Tuesday, August 13, 2013

Sedition Wars Display Boards

Cool Mini Or Not commissioned me to build some lighted display boards for Sedition Wars. The task was to use Fantasy Arc's laser-cut Bug Hunt Corridors. We settled on 4 2'x2' boards that could be used as one large 4'x4' table, two 2'x4' displays, or four separate 2'x2's.


The Layout


I received a box full of Bug Hunt Corridor kits, and came up with the following layout:



I then got to work. Because of the intricacy of each corridor section, they needed to be painted in parts because there's no way to fit a brush in there once everything was glued together. The floors were laid in first, and the wall segments were assembled separately so they could be plugged into the finished floor grating.



Here's how everything fit together– the interior girders and the outer wall sections that go overtop.




The rooms were given a more cream-colored appearance using Model Masters Desert Sand and white sprays The rust chips were painted on by hand and the blood spatters added once everything was assembled.




A Note on Vallejo Game Colors:


I tried out a few new paints on this project. Vallejo Game Color Shadow Grey, Wolf Grey, and Ghost Grey. I must say, wasn't terribly impressed with the performance of the paint. It went on well enough and had some nice opacity, but it doesn't dry the same color it comes out of the bottle. For example, the Shadow Grey was much more purple when painted on, but dried more blue-grey. The Ghost Grey lived up to its name, because I'd paint it on and see a nice bright highlight line. Once it had dried, the highlight was barely visible.


The Vallejo color worked out well enough for this terrain project since I was mainly basecoating and drybrushing, but I can't imagine using these paints to blend color on a miniature because the end result wouldn't look at all like what you had painted on. Has anyone else noticed this, and does the entire Vallejo line suffer from this problem, or just the greys?


The Lighting

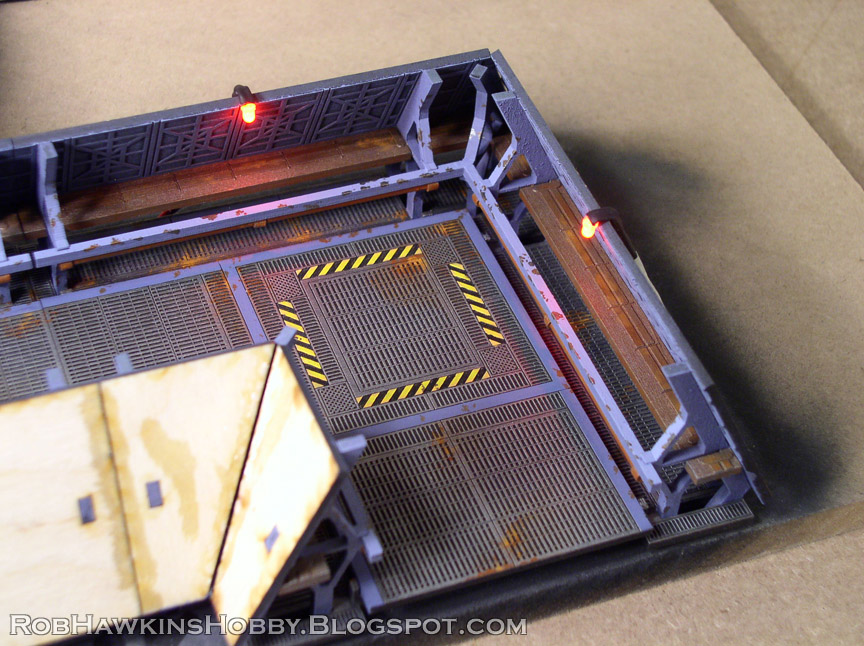

Each board section has about 20 LEDs to illuminate the corridors and rooms. The wiring was installed under the flooring, with the lights coming up over the outer walls to shine down inside.





These two shots show the finished assembly. The naked wood exteriors of the corridors needed to be covered.




I came up with a solution using black foam core that would provide a clean outer shell and cover the lights.




Here's the board section with its outer shell. It just needs some corner strip covering and the base blackened.

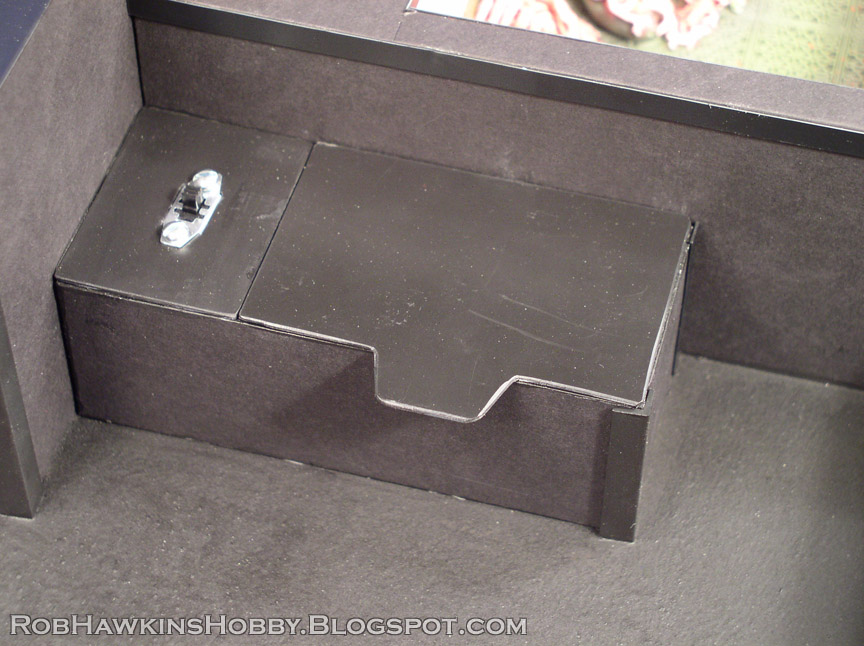

Each board section has its own power source and switch. They run off a simple 9-volt battery.





The Strain Infection


CMON wanted one of the board sections to be overrun with the Strain infection– a bio-organic virus that converts matter to its own horrific designs. To accomplish this I used Aves Apoxie® Sculpt to create tendrils and cables that snake around the corridors like it's reconfiguring the station into some unholy vessel.




To paint the tendrils, after priming the board I sprayed the infected areas with Model Masters Medium Green. P3 Pig Iron was drybrushed overtop to create a metallic green.



The deck grating was painted normally with the Shadow Grey trim and rust. All of the grey trim and yellow caution lines shift toward the green spectrum the closer they are to the Strain infection.



In these shots you can see some of the green tint on the walls and caution stripes.




Coming up, I'll show off the finished board sections with their lighting. For now, here's a little peek:



Looking through the corridors with the red lighting always reminds me of that scene in Event Horizon. You know the one.


'Til next time!
